應用

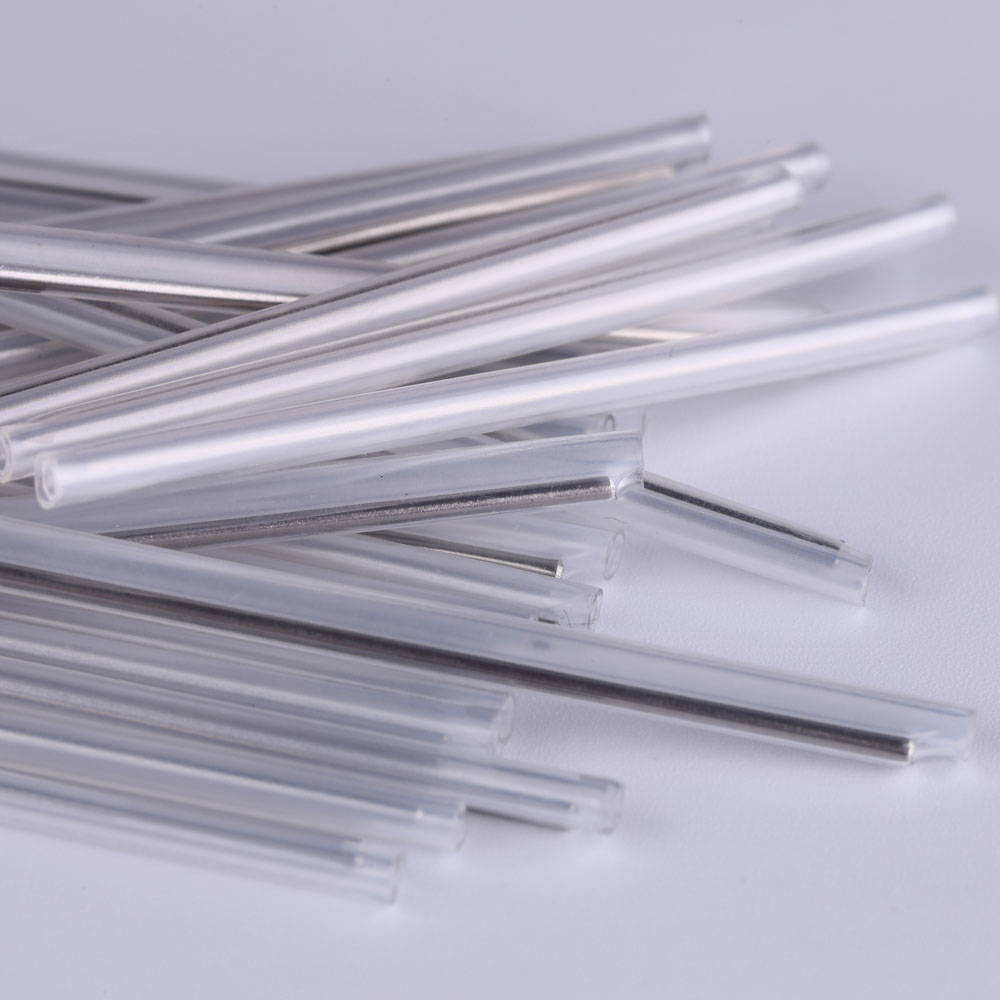

由加強型的鋼針(陶瓷棒、玻纖棒),熱熔管和交聯的聚烯烴組成,可以重建光纖的覆蓋層并可以在連接處提供良好的機械強度,保證良好的光學傳送性能。

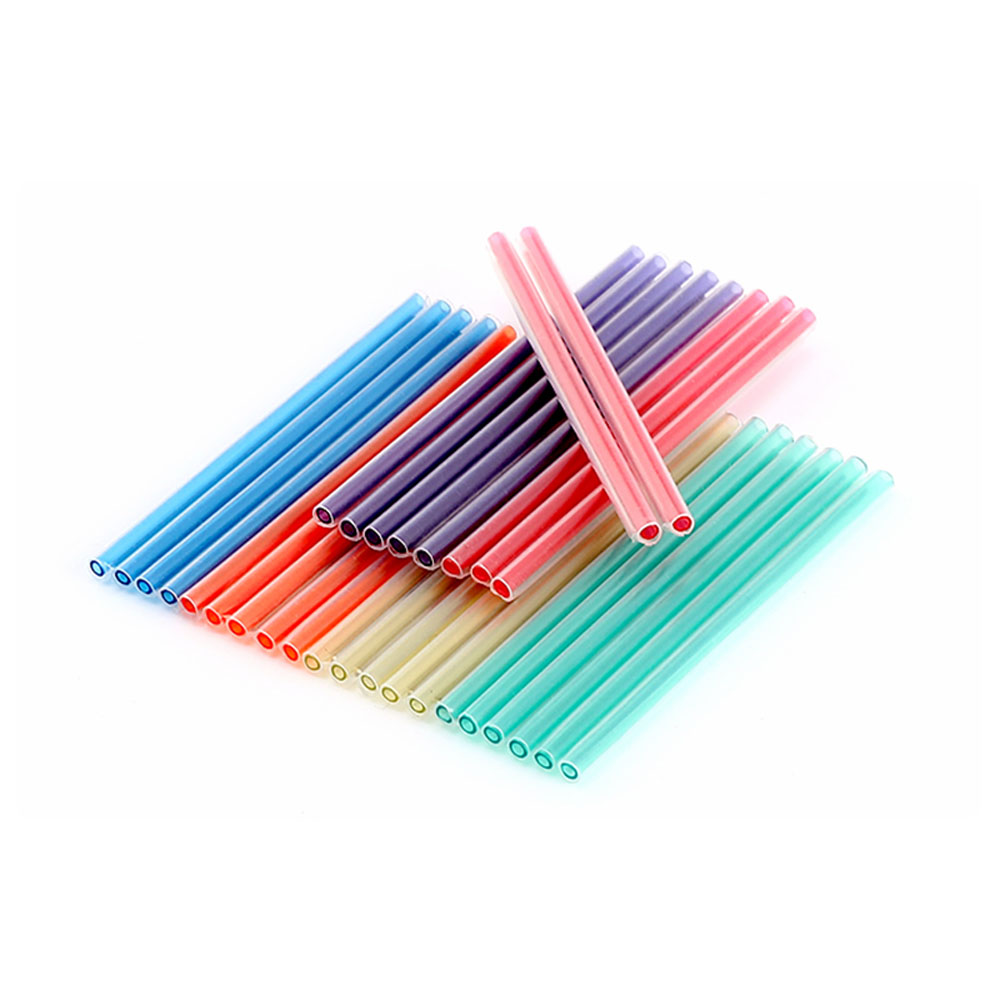

特性/Characteristics 具有很好的防潮和環保性能 透明的套管可以在收縮前更好的連接 可以很方便地使用,并避免在安裝過程中對光纖的損壞 彩色型光纖保護套管可以方便操作 | 操作溫度范圍 操作溫度: -45℃~100℃ 最低收縮溫度: 80℃ 最低完全收縮溫度: 100℃ |
性能參數
Performance | Test Method | Typical data |
Tensile strength | ASTM D 2671 | 16MPa |
Elongation at break | ASTM D 2671 | 700% |
Density | ISO R1183D | 0.94g/cm3 |
Dielectric strength | IEC243 | 25KV/mm |
volume resistance | IEC243 | 1015Ω.cm |
Length changes | ASTM D 2671 | ±5% |
產品規格

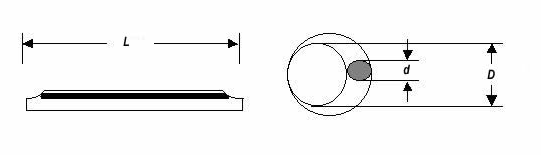

Part NO. |
OD after Recovery (mm) |
Length | Fusion tube(D) | Steel rod(d) | ||
ID(mm) | Length(mm) | OD(mm) | Length(mm) | |||
Larger Sleeves | ||||||
FOSP-61 | 3.0±0.1 | 60 | 1.5 | 61 | 1.5 | 56 |
FOSP-60 | 3.0±0.1 | 60 | 1.5 | 60 | 1.5 | 56 |
FOSP-60B | 2.8±0.1 | 60 | 1.3 | 60 | 1.5 | 56 |
FOSP-50 | 3.0±0.1 | 50 | 1.5 | 50 | 1.5 | 46 |
FOSP-45 | 3.0±0.1 | 45 | 1.5 | 45 | 1.5 | 41 |
FOSP-40 | 3.0±0.1 | 40 | 1.5 | 40 | 1.5 | 36 |
FOSP-23 | 3.0±0.1 | 23 | 1.5 | 23 | 1.5 | 18 |
Standard Sleeves | ||||||
FOSP-60M | 2.6±0.1 | 60 | 1.3 | 60 | 1.2 | 56 |
FOSP-50M | 2.6±0.1 | 50 | 1.3 | 50 | 1.2 | 46 |
FOSP-45M | 2.6±0.1 | 45 | 1.3 | 45 | 1.2 | 41 |
FOSP-40M | 2.6±0.1 | 40 | 1.3 | 40 | 1.2 | 36 |
FOSP-30M | 2.6±0.1 | 30 | 1.3 | 30 | 1.2 | 26 |
FOSP-25M | 2.6±0.1 | 25 | 1.3 | 25 | 1.2 | 21 |
FOSP-60AM | 2.6±0.1 | 60 | 1.4 | 60 | 1.1 | 56 |
Mini Sleeves | ||||||
FOSP-60T | 2.0±0.1 | 60 | 0.5 | 60 | 1.0 | 56 |
FOSP-40T | 2.0±0.1 | 40 | 0.5 | 40 | 1.0 | 36 |
FOSP-60A | 2.4±0.1 | 60 | 1.4 | 60 | 1.0 | 56 |
FOSP-40A | 2.4±0.1 | 40 | 1.4 | 40 | 1.0 | 36 |
FOSP-30A | 2.4±0.1 | 30 | 1.4 | 30 | 1.0 | 26 |
FOSP-25A | 2.5±0.1 | 25 | 1.4 | 25 | 1.0 | 21 |
FOSP-45A | 2.4±0.1 | 45 | 1.4 | 45 | 1.0 | 41 |
Micro Sleeve | ||||||
FOSP-40T-S | 1.5±0.1 | 40 | 0.5 | 40 | 0.7 | 39.5 |
FOSP-40TS | 1.9±0.1 | 40 | 1.2 | 40 | 0.7 | 39.5 |
FOSP-45TS | 1.9±0.1 | 45 | 1.2 | 45 | 0.7 | 44.5 |
FOSP-40S | 1.4±0.1 | 40 | 0.5 | 40 | 0.5 | 39.5 |
FOSP-25S | 1.4±0.1 | 25 | 0.5 | 25 | 0.5 | 24.5 |
FOSP-30S | 1.4±0.1 | 30 | 0.5 | 30 | 0.5 | 29.5 |
FOSP-18S | 1.4±0.1 | 18 | 0.5 | 18 | 0.5 | 17 |
FOSP-15S | 1.4±0.1 | 15 | 0.5 | 15 | 0.5 | 15 |
FOSP-10S | 1.4±0.1 | 10 | 0.5 | 10 | 0.5 | 10 |
All shrink Sleeve | ||||||
FOSP-40M-2 | 2.6±0.1 | 40 | 1.2 | 40 | 1.2 | 36 |
